19 liters

tvet 9Mi The most cost-efficient solution for your clinic

The perfect Autoclave developed exclusively for Veterinarians. The tvet line fits all your sterilization needs by creating cycle parameters to accommodate double wrapped pouches. These cycles ensure sterility and efficient drying of packs and pouches, helping veterinarians meet today's challenging workloads.

Explore this product

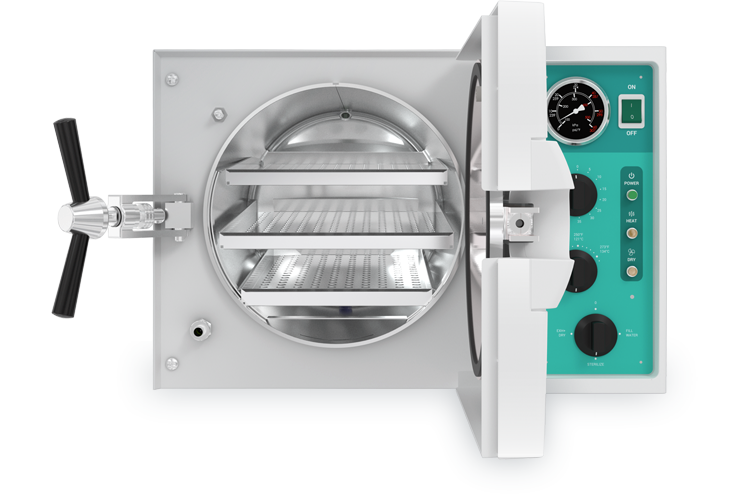

A small and affordable veterinary autoclave, built to last

The small but mighty tvet 9Mi offers unparalleled quality for clinics on a budget. This maintenance free plug-and-play autoclave features a 19 liter stainless steel chamber, just big enough to fit your most important veterinary equipment. Activate each stage of the sterilization cycle with a single touch. Packed with features for the fastest, most versatile operation, the tvet 9M delivers outstanding performance , unmatched safety features and intuitive controls for the most demanding high volume environments.
3 Trays, Tray handle included

Safe-Locking Door
Easy to use with one hand, the decorative stainless steel door has a double safety mechanism
Intuitive Control
Designed with the operator in mind, the colorful control panel is intuitive and easy to use
Simple Drainage
A drainage valve is conveniently located at the front, allowing you to quickly and easily drain the water reservoir
Durable Chamber
Made to last, the electropolished 316L stainless steel chamber is backed by a 10-year warranty
Overheating Protection
The dual safety thermostat and automatic shut-off at the end of all cycles provide reliable overheating protection

An optimized program for every load

Sterilization Cycles
Cycle Type Sterilization Drying Total
Standard Unwrapped Cycle Time (Hot Start) 4 min. 1 min. 20 min.
Standard Wrapped Cycle Time (Hot Start) 7 min. 45 min. 65 min.
NOTE: Cycle times are approximate and may vary depending on instrumental loads.

Bowie & Dick Test Cycle
Verify effective steam penetration. Also suitable for testing air removal with Helix test.

Leak Test Cycle
Verify the integrity of the pressure vessel and its plumbing on a daily or weekly basis.

Technical specifications



Technical specifications

Chamber Dimensions (0 x L)
230mm x 470mm
Chamber Volume
19 Liter
Overall Dimensions (D x W x H)
545mm x 510mm x 365mm
Standard Casette Capacity*
2 Full and 2 Half
Tray Dimensions (D x W x H)
415mm x 170mm x 20mm
No. of Trays
3
Voltage & Frequency
230V
50-60 Hz
Power & Current
1400 W
12 A
Shipping Weight
39 kg
*Standard full size cassette is 203 x 280 mm and standard half size cassette is
203 x 140 mm.

Standards and directives

(a partial list)
Standards
AAMI/ANSI ST-55:2010, FDA 510K cleared (Elara 11)
EN 13060: 2004+A2: 2010 - Small Steam Sterilizer
EN 61010-1: 2010 Safety Requirements for measurement control and laboratory use
EN 61326-1: 2006 Electrical Equipment for EMC Requirements
EN 61010-2-40: 2005 Safety requirements for sterilizers used to treat medical materials
EN 17665-1: 2006 Sterilization of health care products - moist heat
Pressure Vessel
All pressure vessels and boilers are certified according to ASME code section I and section VIII, Div. I and PED 97/23/EC - Pressure Equipment Directive
Quality Standards
  • ISO 9001:2008 Quality Management Systems
  • EN ISO 13485:2012 Quality Management System - Medical Devices
Directives
  • MDD 93/42/EEC amended in Directive 2007/47/EEC
  • 2002/96/EC WEEE and 2002/95/EC RoHS

Featured Accessories

Tuttnauer offers a range of high quality complementary products for your autoclave.

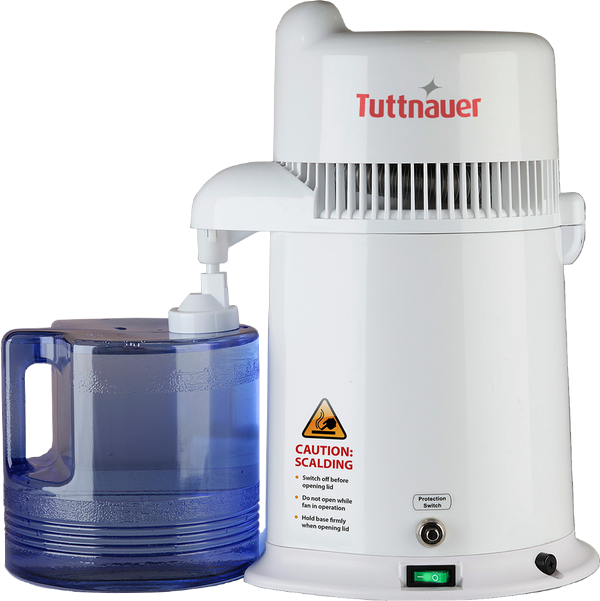

Water distiller
Distill your water to be 99% free of total dissolved solids.  24 Liters a day.

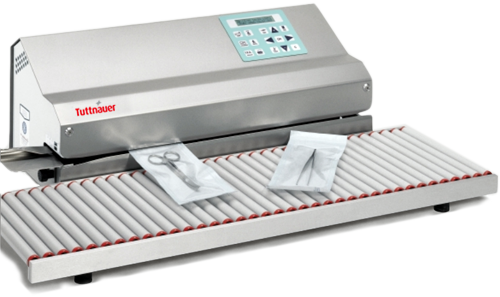

Sealing Machine
Keep instruments sealed after sterilization to maintain perfect sterility during their shelf-life

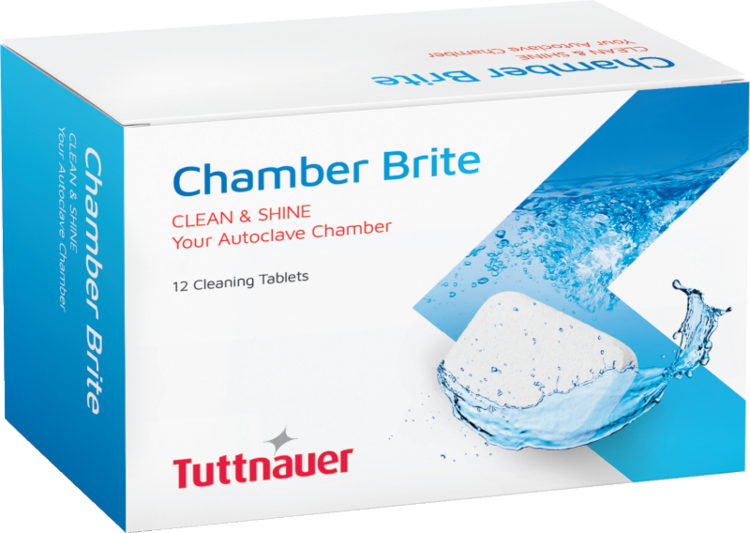

Chamber Brite™
Chamber Brite cleans and descales an autoclaves chamber, reservoir and tubing.

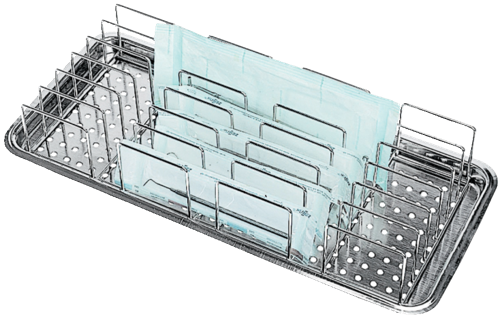

Instrument pouch rack
Stainless steel pouch rack is for loading and unloading instruments.

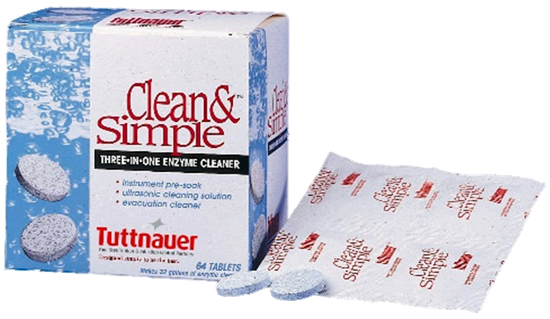

Clean & Simple Ultrasonic
Ultrasonic enzymatic solution dispensed in tablet form.

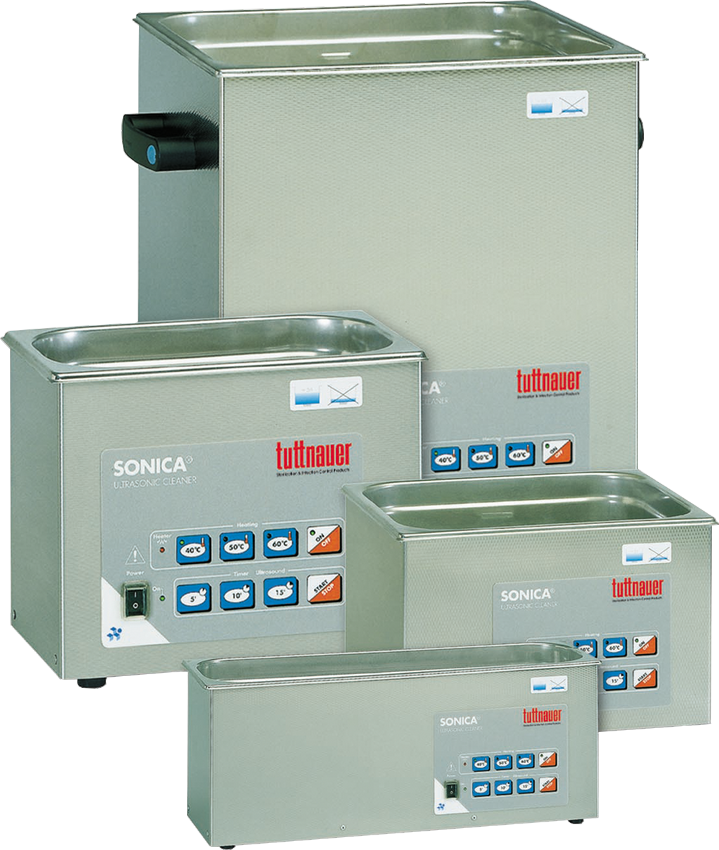

Ultrasonic Cleaner
Quiet cleaning power which is less aggressive to instruments.
