265 Liters | 12 DIN

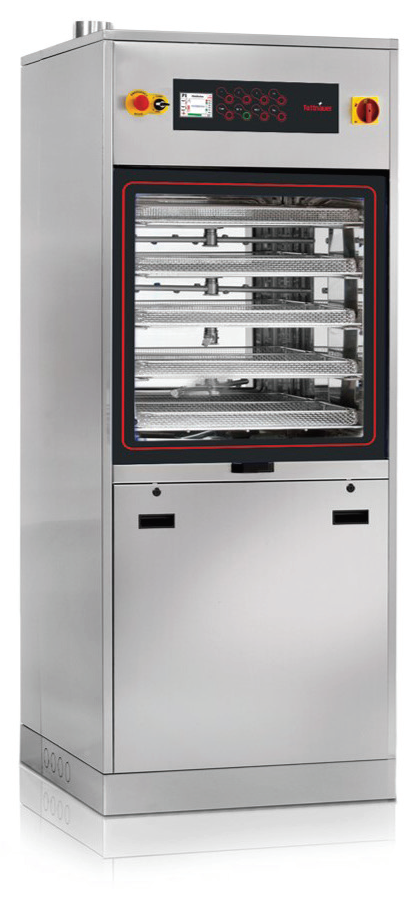

Tiva 10-V Washer Disinfector Automatic Sliding Door/s
- 265 Liter chamber
- 12 DIN basket capacity
- Hands-free door operation
- da Vinci instrument trolley available
Overview
Powerful, reliable and customizable
The Tiva 10-V washer disinfector provides a flexible turnkey solution for washing, disinfecting and drying diverse medical instruments for a complete decontamination life cycle. The TIVA 10-V washer is equipped with automatic sliding door/s and is best suited for surgical and sterilization departments.
Automatic sliding glass door/s
The slim design allows you to fit these models into a small space while maximizing load capacity
Washing chamber made of high quality AISI 316L
265 Liter chamber, suited for sterilization departments
Diverse load types
Can be loaded with up to 6 washing levels for a total 12 DIN baskets. Available trolleys for different kinds of loads
Advanced Touch Control
Touch panel with color graphic display with a total of 40 programs: preset and programmable
Advanced features
Air drying prefilter + HEPA H14 filter. Boiler for purified water. 2 dosing pumps. 3 heating elements. Built-in steam condenser
Hands-free door operation
Equipped with a sensor for hands free door operation
Tiva 10-1V
Tiva 10-2V
Tiva 10-1V-HS
Tiva 10-2V-HS
| A | HOT WATER CONNECTION-3/4”G (TUBE 1/2”G) |
| B | COLD WATER CONNECTION-3/4”G (TUBE 1/2”G) |
| C2 | DRAIN DN 40 - HOSE CONNECTION 25mm (AT FLOOR) |
| D2 | DRAIN DN 40 - HOSE CONNECTION 25mm (AT WALL) |
| O | DEMINERALIZED WATER CONNECTION-1/2”G |
| G | ELECTRICAL CONNECTION |
| Q | STEAM CONNECTION 1/2”G (INLET) |
| R | STEAM CONNECTION OUTLET 1/2”G (OUTLET) |
Buy it with
TIVA10 Da Vinci Instruments Trolley
Special trolley for washing da Vinci Surgical System insruments (Xi, Si)
T-CLEAN A
Alkaline detergent for the automated reprocessing of surgical instruments and equipment
T-CLEAN N
Acidic Deposit Neutralizer & Instrument Renovator
T-CLEAN R
Rinse aid for the automated reprocessing of surgical instruments and equipment
