The tiva washer-disinfector line

Tiva washer disinfectors provide a flexible turnkey solution for washing, disinfecting and drying diverse medical instruments for a complete decontamination life cycle.

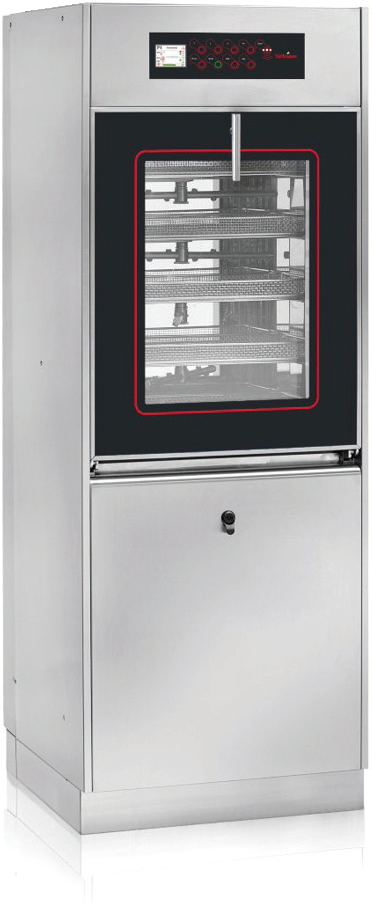

The TIVA 10-M washer is equipped with manual hinged glass door/s and is best suited for surgical and sterilization departments. It can be loaded with up to 6 washing levels of total 12 DIN baskets with large variety of washing trolleys and accessories. Available trolleys for surgical instruments, tubular, laparoscopy, ophthalmology, containers, shoes, anesthesia and more.

Features

  • Manual glass door/s
  • Washing chamber made of high quality AISI 316L
  • Touch panel with color graphic display
  • A total of 40 programs: Preset and programmable
  • Air drying prefilter + HEPA H14 filter
  • Boiler for purified water
  • 2 dosing pumps with flowmeter for acid and alkaline detergents (2 additional pumps optional)
  • 3 heating elements
  • USB/ Printer for data documentation
  • Built-in steam condenser
  • Storage cabinet for four 5L detergents

Optional

  • Conductivity measurements to check rinse water quality before disinfection phase (if the machine is equipped with demineralized water connections)
  • Chamber LED light: Operates during loading, unloading and program running
  • Washing trolley recognition
  • Spray arm continuous monitoring of water system to guarantee that the load is currently washed
  • Frame closing for pass-through configuration
  • Wall drain pump
  • Utility steam connection/hybrid heating: Steam and electric
  • Water connection for normal version: Cold water softener, purified water
  • Water connection for HS version: Cold water softener, 2nd boiler for warm water
  • Graphic report of washing phases including time and temperature

Tiva 10-1M
Tiva 10-2M

265 liter chamber

Dimensions (WxDxH) 650mm x 700mm x1850mm

Tiva 10-2M-HS
Tiva 10-2M-HS

265 liter chamber

Dimensions (WxDxH) 650mm x 750mm x 2300mm
