EL - D Line Benchtop Autoclaves for Life Sciences

  1. 28 to160 liter chamber volumes
  2. Liquid sterilization with various cooling options
  3. Pipette and Glass sterilization
  4. Instrument sterilization (wrapped or unwrapped)
  5. Biohazard and Waste sterilization
  6. Agar preparation
Explore this product
Overview Control System Documentation & Monitoring Liquids & Isothermal Glassware & Hollows High Performance Built-in Steam Generator Cycle Programs Biohazard & Waste Standards

EL - D Line models

Tuttnauer benchtop laboratory autoclaves are front loading autoclaves available in chamber sizes from 28 to 160 liters.  EL models have an advanced multi-color control panel and a chamber made of 316L stainless steel. Tuttnauer laboratory autoclaves have been designed to provide high quality repeatable performance and accountability for a wide range of applications used in modern laboratories.

Each model has a number of optional added-value features which can be configured for fast cooling, efficient drying, biohazard and waste sterilization, Fo control, and more.

Benchtop lab autoclaves are designed to save space on your laboratory workbench.

Benchtop D-Line Models - Technical Data

D-Line Model Chamber Dimensions ØxD (mm) Chamber Volume (Liter) External DimensionsWxHxD (mm)
2840 EL 280 x 400 28 530 x 440 x 630
3850 EL 380 x 500 65 720 x 540 x 765
3870 EL 380 x 690 85 720 x 540 x 940
5075 EL 500 x 750 160 860 x 740 x 1120
* External dimensions may change when an optional internal steam generator is added

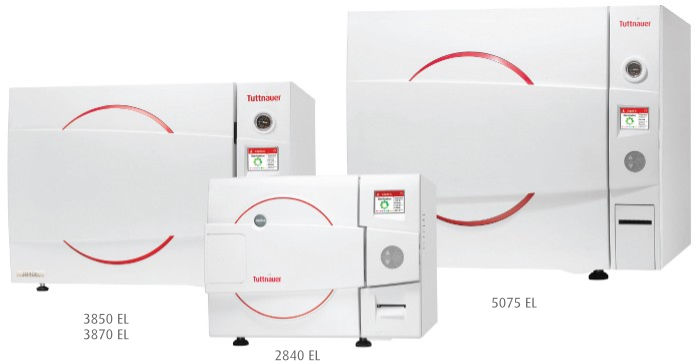

Lab benchtop autoclaves - EL

Erlenmeyer Flasks (ml) Loading Capacity

Model 250  500 1000 2000 3000 5000
2840 1 x 9 1 x 4 1 0 0 0
3850 1 x 17 1 x 11 1 x 6 1 x 3 0 0
3870 1 x 23 1 x 17 1 x 10 1 x 5 0 0
5075 1 x 50 - 1 x 18 1 x 18 - 1 x 18 1 x 15 1 x 7 1 x 4 1 x 3




Schott-Duran Flasks (ml) Loading Capacity

Model 250  500 1000 2000 3000 5000
2840 1 x 12 1 x 9 1 x 5 0 - 0
3850 1 x 27 1 x 16 1 x 11 1 x 6 - 0
3870 1 x 36 1 x 23 1 x 18 1 x 9 - 0
5075 1 x 55 - 1 x 39 1 x 32 - 1 x 27 1 x 20 1 x 10  - 1 x 5
* Optional shelves are needed to accommodate some of the loading capacities mentioned above.


Baskets and Containers

Benchtop stainless steel wire baskets and containers in different sizes for all autoclave models.

Safety

Safety for personnel, autoclave and load are priority in the design, construction and operation of any Tuttnauer autoclave. Tuttnauer is committed to the highest industry safety standards and directives to ensure safety not only for your employees operating the autoclaves but also for your laboratory and the loads being sterilized.

  • A safety device prevents the operator from opening the door when the chamber is pressurized
  • Steam will not enter the chamber when the door is open
  • A cycle cannot start if the door is open or not properly locked
  • The door cannot unlock until liquid temperature reaches the predetermined end temperature
  • Two independent flexible PT100 temperature sensors to prevent over-boiling of liquids and explosions of bottles
