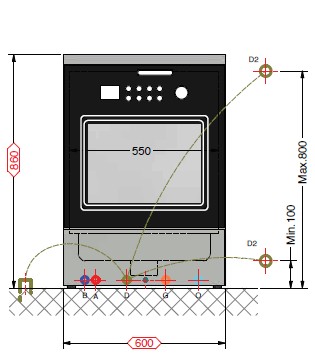

Tiva 8-1M

60 cm narrow design

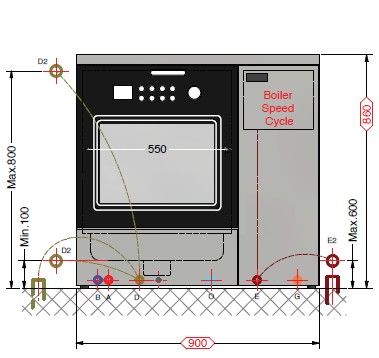

Tiva 8-WD-1M / TIVA 8-HS-1M

90 cm WIDE design


A HOT WATER CONNECTION-3/4”G (TUBE 1/2”G)
B COLD WATER CONNECTION-3/4”G (TUBE 1/2”G)
D2 DRAIN DN 40 - HOSE CONNECTION 25mm (AT WALL)
G ELECTRICAL CONNECTION
O DEMINERALIZED WATER CONNECTION-1/2”G
E2 DRAIN DN 40 - HOSE CONNECTION 25mm (AT WALL)
